20ft ISO Container Structure: Key Components Explained

Primary Structural Components of a 20ft ISO Shipping Container

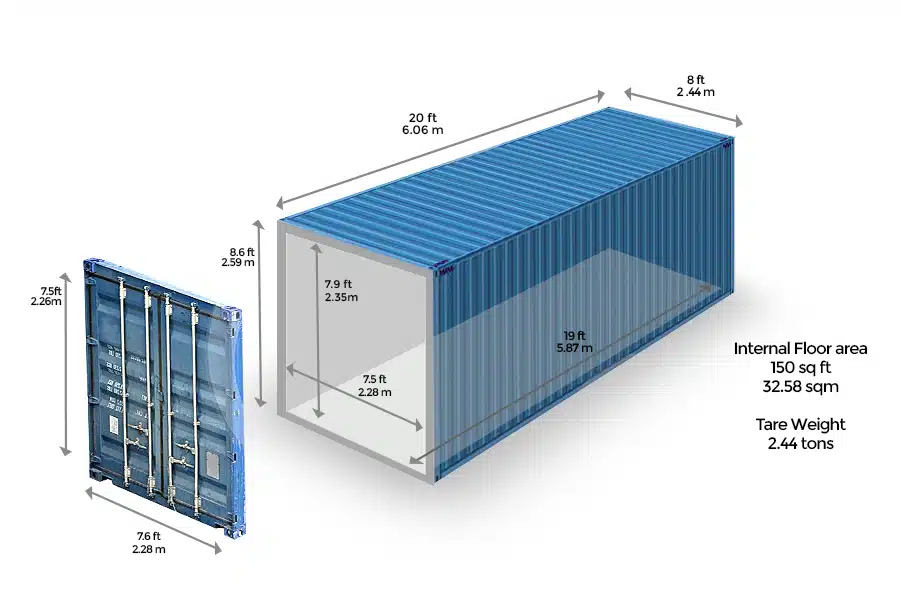

A standard 20ft ISO shipping container is built with a combination of engineered steel components that ensure durability, load-bearing capacity, and easy transport. Below is a breakdown of the main structural elements:

• Roof:
  The top panel of the container, typically made from corrugated steel. It provides overhead protection and adds rigidity to the structure.

• Sidewalls:
  These vertical panels form the container’s sides. Made from corrugated steel or aluminum, they provide enclosure and resistance to lateral forces.

• Floor:
  The base of the container, usually constructed from marine-grade plywood supported by steel cross members. It bears the full weight of the cargo.

• Cross Members:
  Steel beams that run laterally beneath the floor. They support the floor panels and help distribute weight evenly.

• Top & Bottom Rails:
  Longitudinal steel beams that form the upper and lower edges of the sidewalls. They reinforce the structure and provide mounting points for walls and doors.

• Corner Posts:
  Vertical columns located at each corner of the container. These are key load-bearing elements used for stacking and lifting.

• Corner Castings:
  Steel fittings welded to each corner of the container. They allow for standardized lifting, securing, and stacking using container-handling equipment.

Note: On some ISO shelters, some of the primary structural components may be concealed within the wall, roof, and floor panels. The areas where the adjacent panels join will be thoroughly inspected. This inspection will meet the criteria for the Wall Beams and the Roof Beams
